ERIS

EXTERIOR DOORS ARGALI CLASSIC

SASH CONSTRUCTION:

Panel doors of classic design in rebated system. On the surface of the leaf pasted decorative decorations. The surface of the leaves painted with opaque or transparent paints. Thickness of the leaf 80 mm.

Heat transfer coefficient: Ud=0,80 W/m2K*
anti-burglary class EN 1627 RC2

*for models of width "80" in opaque colors, pine birch.

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):pine frame (opaque paints) or oak frame (transparent paints) 100x70 mm

lacquered oak threshold with protective aluminum profile

anti-theft system ("French rebate")

double sealing system (around the perimeter of the leaf and frame)

screw hinges adjustable in three planes in silver - 4 pcs.

optional: hinge covers

door closer optional: covered

FUHR four-point slat lock (2 bolts and 2 hooks) operated by a handle for two inserts, locked by lifting the handle, top inserts independent, 92 mm spacing

optional: two inserts upper 55/50 lower 55G/50 (with knob), security related to the key class 6, resistance to attack class

optionally: handle GARDA (handle + door knob) on the long arm with cylinder protection, top escutcheon with cylinder protection

opening outwards

Características técnicas

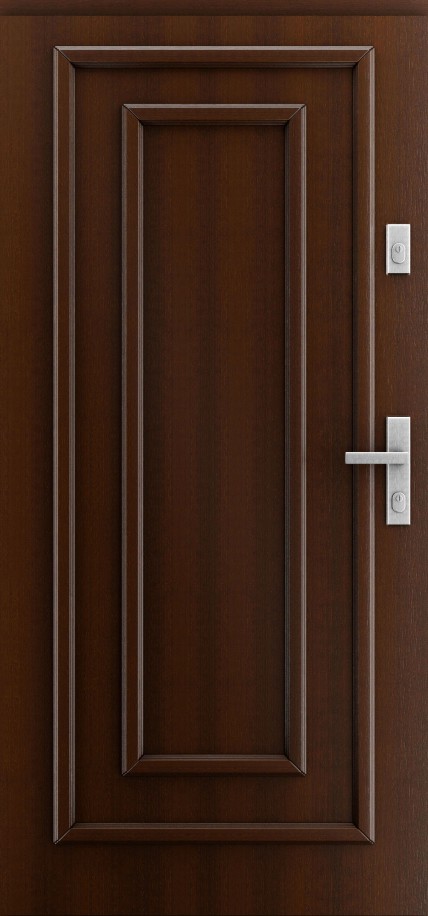

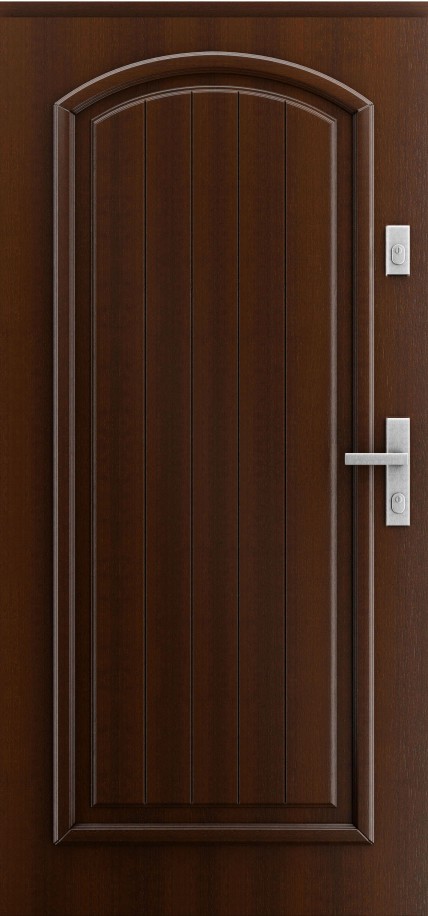

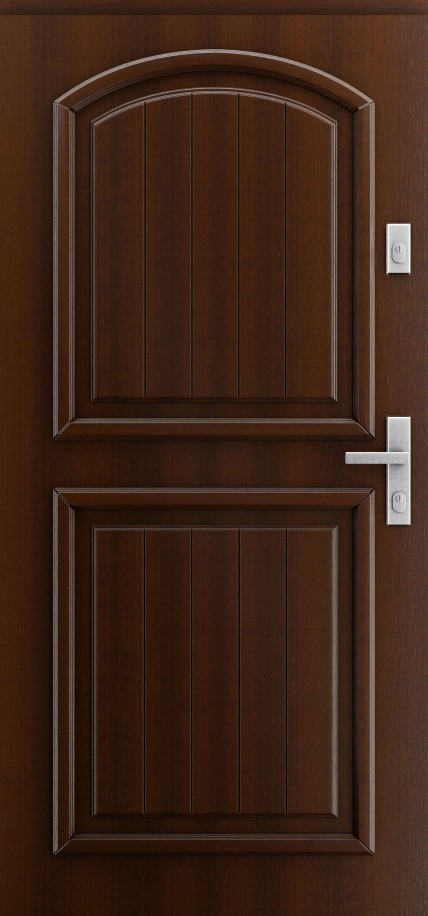

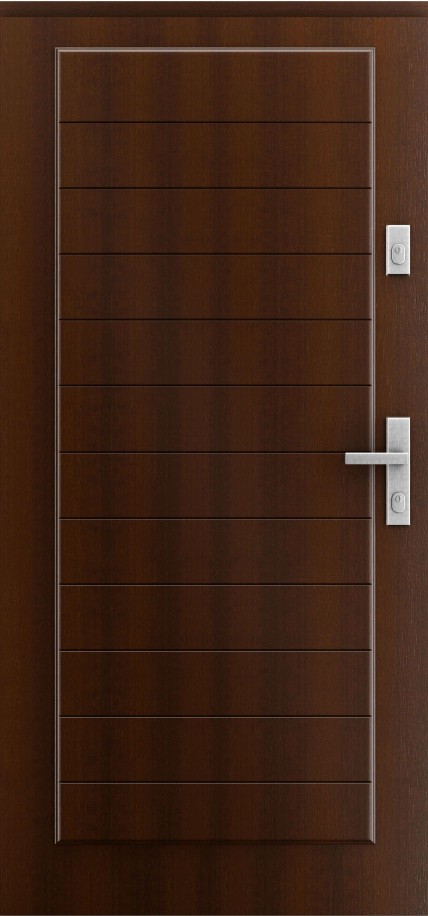

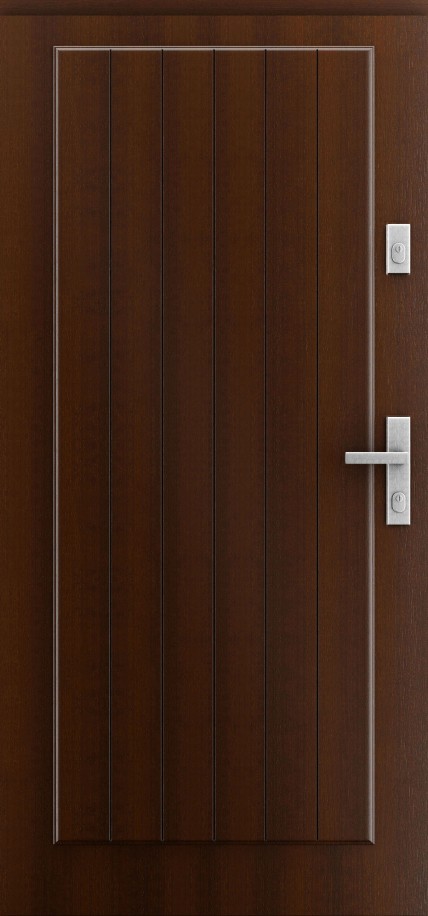

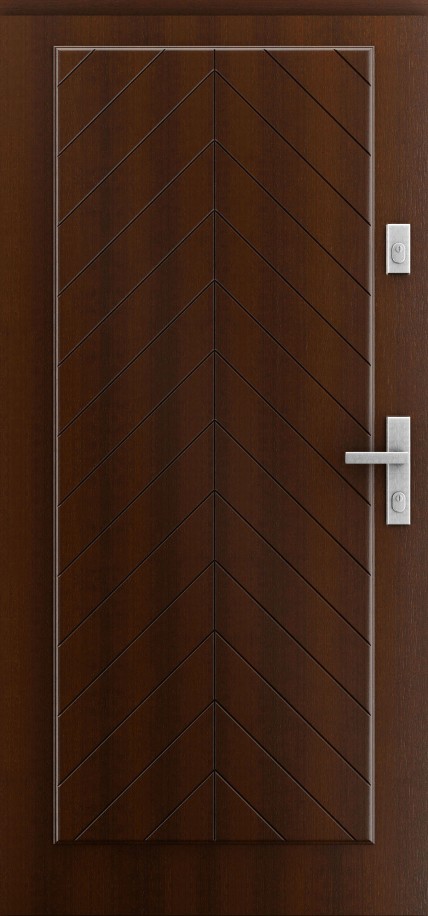

Modelos disponibles	V01, V00, V05, V04, V03, V02
Acabados	TRANSPARENT PAINTS, COVERING PAINTS
Colores	c343, c307, c346, c344, c309, c345, c318, c312, c314, c314, c309, c347, c316, c316, c318, c348, c304, c320, c349, c322, c307, c312, c324, c327, c329, c331, c333, c320, c305, c322, c315, c328, c313, c326, c311, c325, c310, c323, c308, c321, c306, c319, c305, c317, c333, c315, c331, c313, c329, c311, c327, c310, c324, c308, c330, c317, c332, c319, c306, c246, c244, c243, c350, c351, c304, c342, c349, c341, c348, c340, c347, c339, c346, c338, c345, c337, c344, c336, c343, c335, c342, c334, c341, c364, c340, c363, c339, c362, c338, c361, c337, c360, c336, c359, c335, c358, c334, c357, c364, c356, c363, c355, c362, c354, c361, c353, c360, c352, c359, c351, c358, c350, c357, c243, c356, c244, c355, c246, c354, c242, c353, c241, c352, c242, c241
