SATURN

EXTERIOR DOOR SATURN

SASH CONSTRUCTION:

Doors in a rebated system with a timeless design. Sash surface painted with opaque or transparent paints. The filling is a thermal insulation layer. On the surface of the leaf on the external side the application of stainless steel in INOX or black color (applies to version L1). Thickness of the leaf 60 mm.

Heat transfer coefficient: Ud=1.1 W/m2K*
Burglar resistance class EN 1627 RC2

* for doors of width "80", "90", "100" in models 00, 02, 03, 04S2

STANDARD EQUIPMENT (INCLUDED IN THE PRICE):

oak threshold with aluminum profile

pine (opaque paints) or oak (transparent paints) 100x60 mm

anti-theft system ("French rebate")

double gasket system (around the perimeter of the sash and frame)

glazing package - single-chamber with Chromatech Ultra warm frame with anti-burglary class P4
optional: mirastar (Venetian mirror), tinted, reflective, ornamental glass (does not apply to design 00, 02, 03)

screwed adjustable in three planes in silver color - 4 pcs,
optional: hinge covers

FUHR four-point slat lock (2 bolts and 2 hooks) operated by a handle for two inserts, locked by lifting the handle, top inserts independent, 92 mm spacing

door opening outwards

ADDITIONAL EQUIPMENT (AT EXTRA CHARGE):

metal appliqués in black (pattern L1)

frame widening slats

Características técnicas

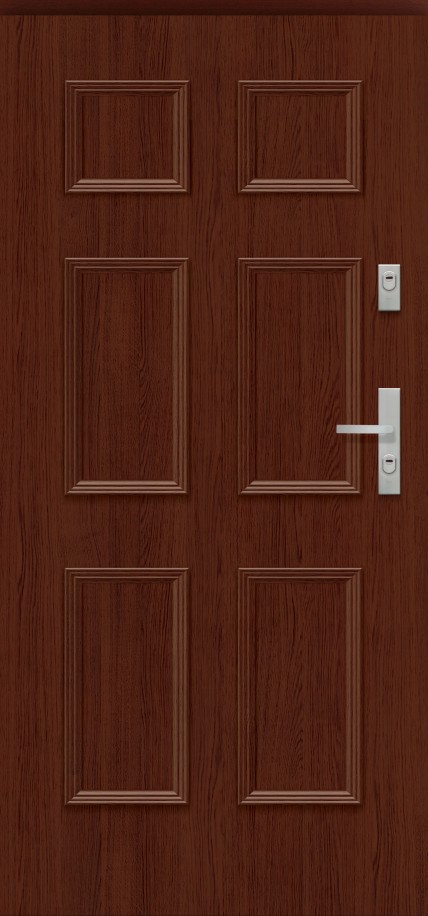

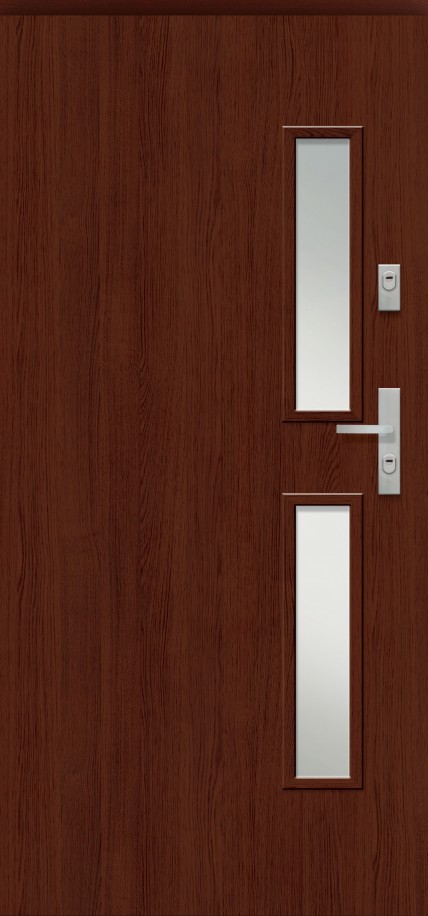

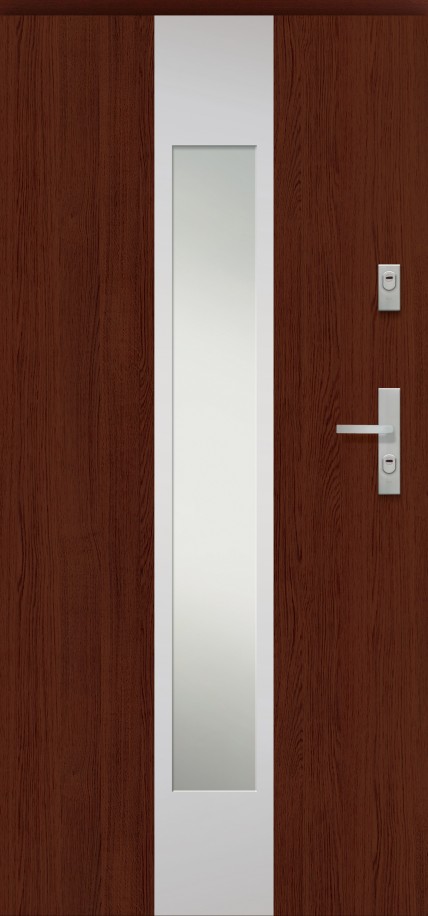

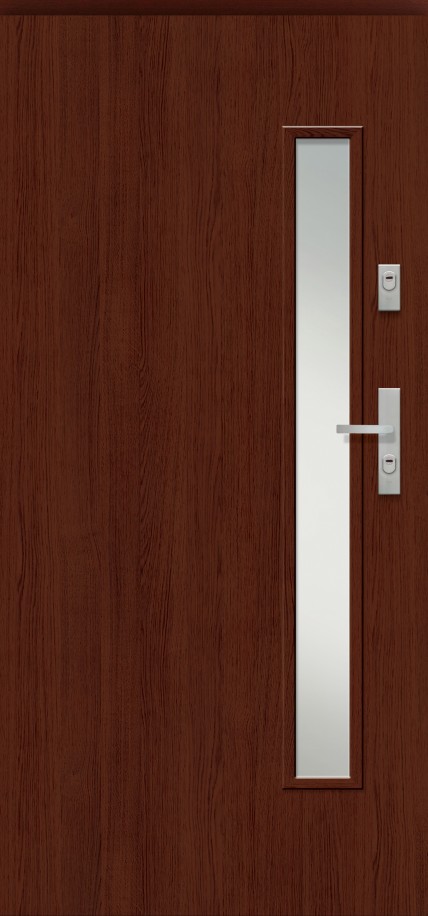

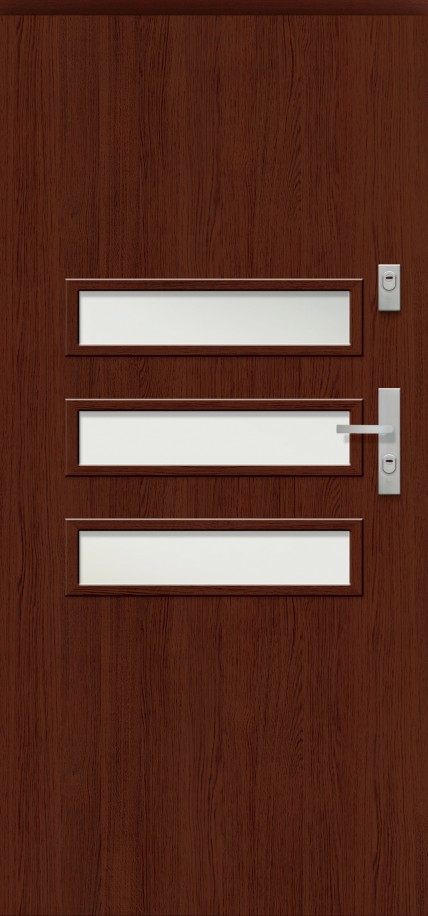

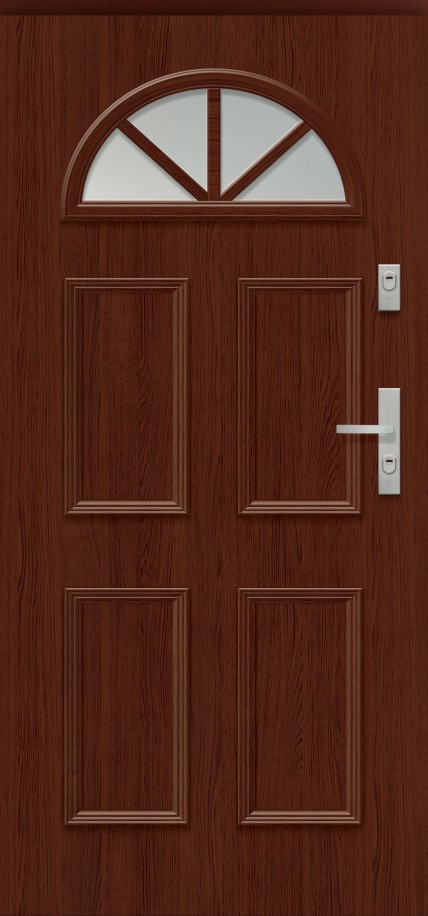

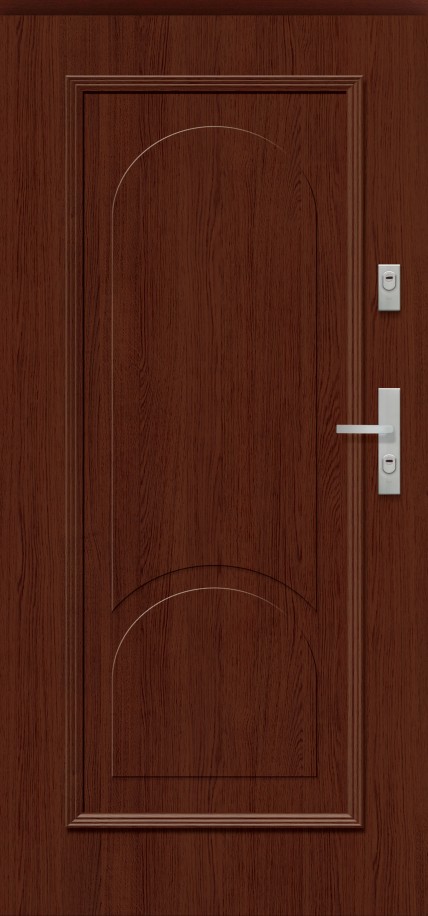

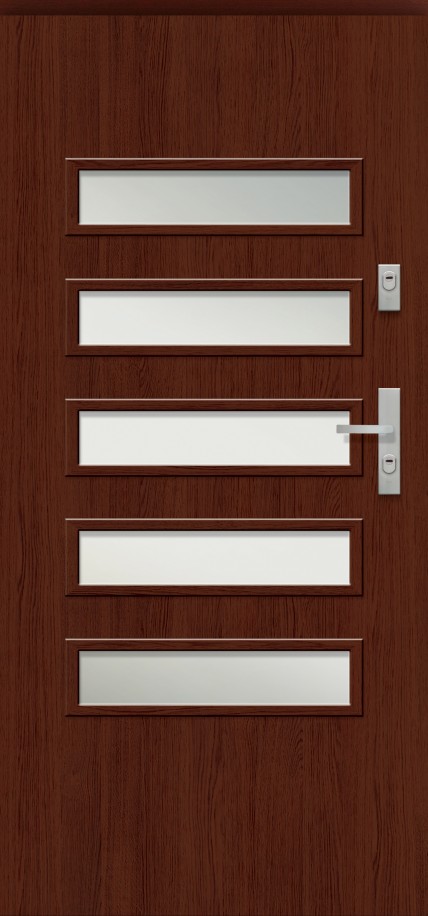

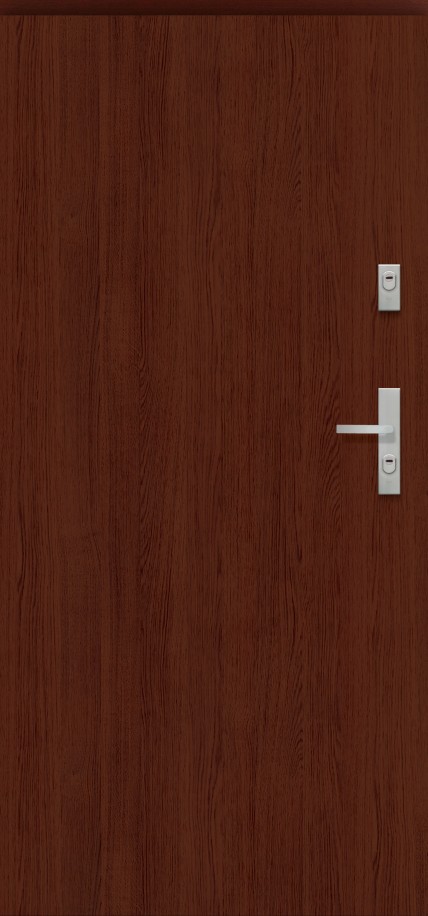

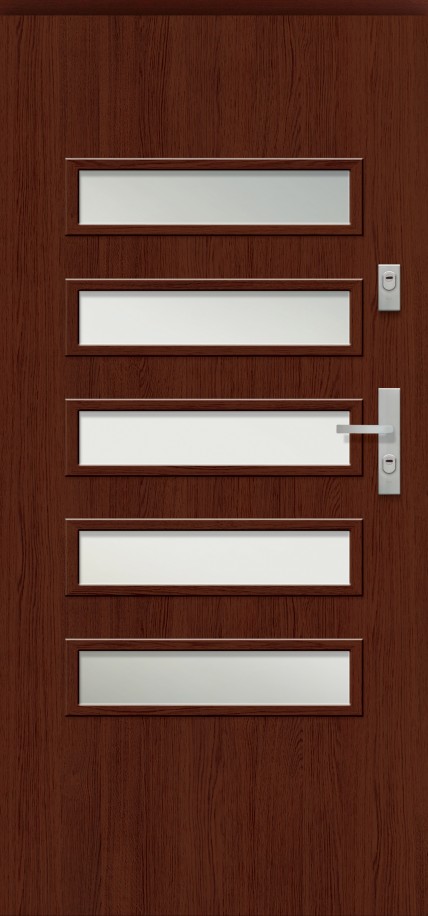

Modelos disponibles	V3S3, V00, V00, V3S3, V3S5, V3S5, V1S, V1S, V3S2, V3S2, V3S1, V3S1, V2S1, V2S1, V02, V02, V01, V01
Acabados	TRANSPARENT PAINTS, TRANSPARENT PAINTS, COVERING PAINTS, COVERING PAINTS
Colores	c309, c312, c312, c314, c320, c314, c316, c318, c316, c345, c307, c307, c309, c346, c345, c241, c246, c243, c351, c353, c360, c361, c334, c336, c242, c350, c363, c336, c334, c335, c244, c350, c354, c355, c361, c349, c349, c322, c342, c338, c340, c341, c344, c339, c340, c341, c343, c342, c343, c318, c348, c304, c304, c344, c244, c246, c364, c364, c243, c351, c353, c357, c358, c359, c362, c363, c362, c337, c337, c346, c347, c320, c352, c354, c355, c356, c357, c352, c356, c358, c335, c241, c242, c359, c360, c347, c348, c338, c339, c324, c324, c327, c327, c329, c331, c329, c331, c333, c333, c305, c305, c306, c306, c308, c308, c310, c310, c311, c313, c311, c313, c315, c317, c315, c317, c319, c319, c321, c321, c323, c323, c325, c325, c326, c326, c328, c330, c328, c332, c330, c332, c322
