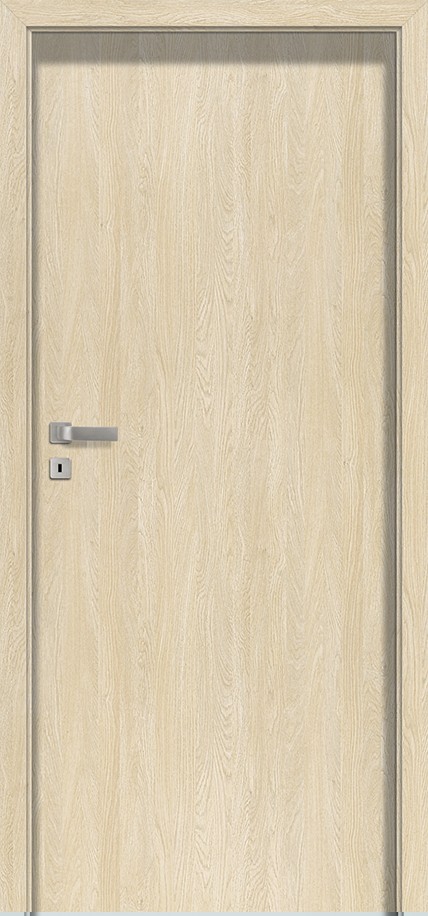

Soundproofing TYPE B

Soundproof doors TYPE B

Single-leaf soundproof doors in rebated and non-rebated system. The door leaf is made of coniferous wood glued on both sides with HDF board. The filling is a special POL-SKONE construction. The leaf with a dropping gasket. The doors are available in single and double leaf version with a wooden frame (fixed DUO or adjustable DUO).

• mechanical class: class 2 mechanical strength requirements, i.e. average operating conditions.
• National Technical Assessment ITB-KOT-2021/2041 edition 1

WYMIARY DRZWI

DOOR DIMENSIONS

Type B (rebated)

• Fixed wooden frame:
  max. width ‘110’ - 1195 mm, max. height 2500 mm
• Adjustable wooden frame:
  max. width ‘110’ - 1195 mm, max. height 2267 mm
• DIN adjustable frame:
  max. width ‘100’ 1046 mm, max. height 2300 mm
• Adjustable metal frame:
  max. width ‘110’ - 1217 mm, max. height 2278 mm
• FD12 fixed metal frame:
  max. width: ‘110’ - 1197 mm, max. height 2268 mm

TYPE B Duo (rebate-free)

• DUO fixed, adjustable wooden door frame:
  Single leaf door:
  max. width ‘100’ - 1101 mm, max. height 2500 mm
  Double-leaf doors:
  max. width ‘100+100’ - 2116 mm, max. height 2500 mm

LEAF FINISH

• Smooth surface painted, veneered, covered with CPL laminate with a thickness of 0.2 to 0.7 mm, HPL laminate with a thickness of 0.7 to 1.0 mm
  or woodgrain foil. Available decorations: flat, made of decorative profiled slats, aluminium decors (TYPE A version only).

FRAMES

• Painted, veneered frame, covered with CPL 0.15 mm or foil matched to the colour of the leaf.
• Solid wooden pine - optionally with masking strips, quarter round.
• Adjustable wooden with widening panels and angle bands.
• DIN adjustable - made of 22 mm thick MDF panels.
• Wooden adjustable DUO with widening panels and angle brackets.
• Wooden fixed DUO pine (TYPE B Duo) - optionally with cover strips, quarter round.
• FD12 fixed metal made of 1.5 mm thick steel sheet with rebate seal.
• Adjustable metal made of 1.5 mm thick steel sheet. The frames are powder-coated as standard in white
  (RAL 9016 and RAL 9003), grey (RAL 7047), brown (RAL 8014), beige (NCS S 2005 Y50R), graphite (RAL 7024), black (RAL 9005).
  It is possible to paint the door frames in non-standard RAL or NCS colours after consultation with the Sales Department. The frame consists of a main section and an angle band that slides into the main section.

STANDARD EQUIPMENT

TYPE B

• pintle hinges adjustable in 3 planes manufactured by TKZ Polska
• ratchet and locking cylinder or key lock
• drop gasket

TYPE B Duo

• covered hinge (adjustable in 3 planes)
• Magnetic lock for a patent insert or key for single leaf doors
• deadbolt lock for profile cylinder or key for double leaf doors
• Drop seal

No possibility of using stainless steel covers on the leaf edges.
No possibility of using aluminium decors in the TYPE B version.

ADDITIONAL EQUIPMENT

• overhead door closer
• additional mortise or overhead lock
• electric door strike aversion or reversing (TYPE B)
• electromagnetic jumper
• panoramic viewfinder - stainless steel 95/116.85; brass, anthracite, black matt
• electronic hotel locks
• width ‘100’ +20%
• width ‘110’ +40%
• doors higher by 50 mm or 100 mm +10%
• doors higher by 150 mm or 200 mm +20%
• doors higher by 250 mm or 300 mm +30% - doors higher by 350 mm or 400 mm
• 350 mm or 400 mm higher doors +40%
• doors lower by 50 mm or 100 mm +20%
• bi-parting doors - no electric door strike possible
