BIFOLD

Puertas especiales

Swing doors

Our swinging doors are the ideal solution for those who value comfort, style and high quality workmanship. Thanks to the use of innovative materials and precise workmanship, our doors are perfect for both homes and commercial spaces, bringing harmony and fluidity to the transitions between rooms. Experience how our doors can transform your space!

Solid or glazed leaf in the rebate-free system. The construction of the leaf consists of a coniferous timber frame faced with HDF panels on both sides. Standard filling is a layer with honeycomb structure (hollow board optional). Nominal thickness of the leaf is 40 mm.

CASEMENT CONSTRUCTION:

Solid or glazed sash in the rebate-free system. The leaf structure consists of a coniferous timber frame faced with HDF boards on both sides. Standard
filling is a layer with honeycomb structure (optionally hollow or solid board). The nominal thickness of the leaf is 40 mm.

STANDARD EQUIPMENT

swing hinge: height up to 2076 mm - 3 pcs.
height 2176 mm or 2276 mm - 4 pcs.

FRAMES:

Painted, veneered frame, veneered with 0.15 mm CPL laminate or foil matching the colour of the leaf.
Solid wooden pine - optionally with masking strips

OPTIONAL ACCESSORIES

roller lock

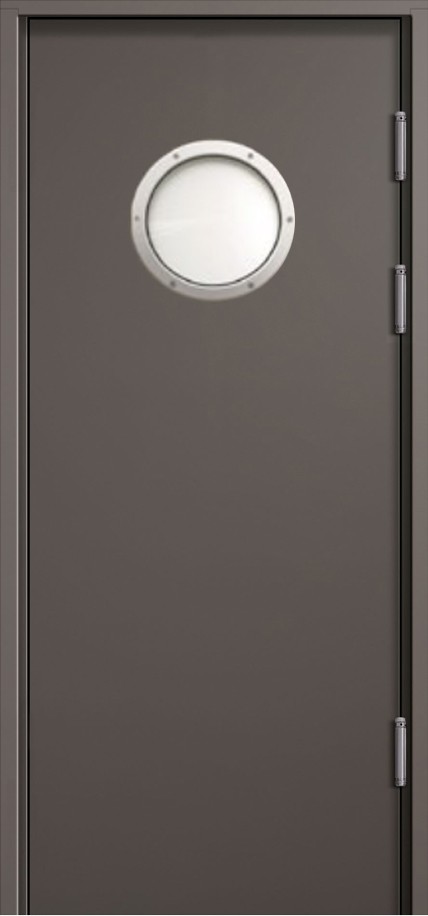

porthole
stainless steel panels

DOOR DIMENSIONS:

Fixed wooden frame:
Single leaf door: max. width ‘90’ - 1069 mm, max. height 2076 mm
Double-leaf doors: max. width ‘90+90’ - 2018 mm, max. height 2076 mm
It is possible to produce doors with a height of 2176 mm or 2276 mm. Doors with a height of 2176 mm, 2276 mm approved for sale on the basis of individual technical documentation.

ADDITIONAL INFORMATION:

mechanical strength class 2 according to PN-EN 1192:2001 standard
Technical Approval AT-15-6411/2016

SWING DOOR DIMENSIONS
single-leaf swing door
width „60”	769x2076 mm
width „70”	869x2076 mm
width „80”	969x2076 mm
width „90”	1069x2076 mm
double swing door
width „60”+„60”	1418x2076 mm
width „70”+„70”	1618x2076 mm
width „80”+„80”	1818x2076 mm
width „90”+„90”	2018x2076 mm

Características técnicas

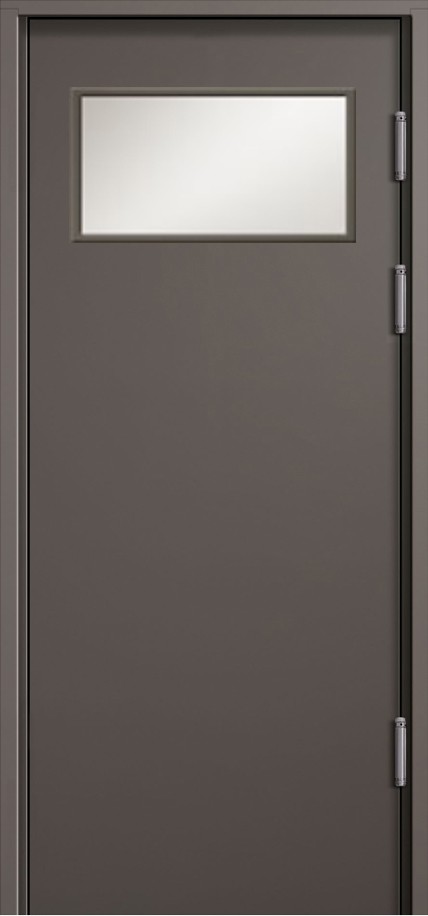

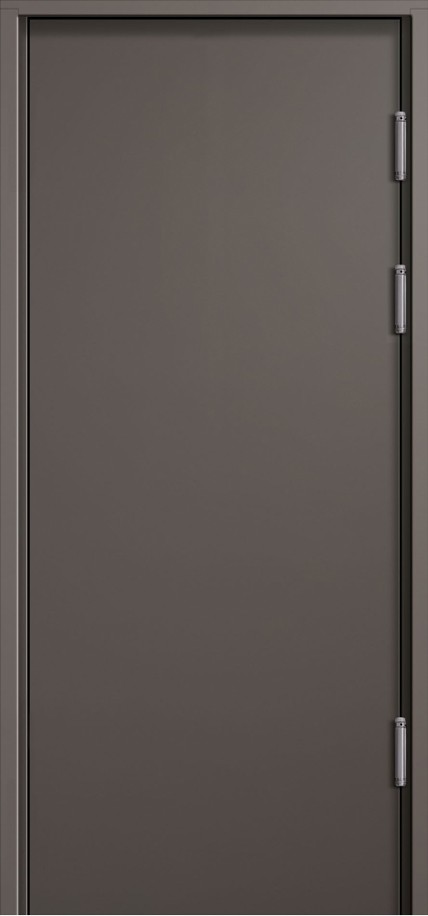

Modelos disponibles	02, 00 z bulajem, 00 z bulajem, 02, W00, W00
Acabados	LAMISTONE CPL, ECO TOP, ECO TOP, PAINTED, PAINTED, HIGH TOP, HIGH TOP, LAMISTONE CPL, SILKSTONE, SILKSTONE, LAMINATED CPL, LAMINATED CPL, VENEERED, VENEERED, UNI MAT PLUS, UNI MAT PLUS
Colores	c72, c71, c75, c74, c16, c18, c18, c17, c17, c16, c70, c71, c72, c73, c73, c70, c19, c74, c75, c83, c83, c84, c84, c85, c85, c87, c87, c88, c88, c9, c8, c9, c8, c6, c6, c5, c5, c19, c24, c24, c26, c26, c28, c28, c46, c46, c40, c40, c38, c38, c37, c37, c93, c93, c33, c33, c62, c62, c52, c52, c50, c50, c58, c58, c61, c61
