SUBITO

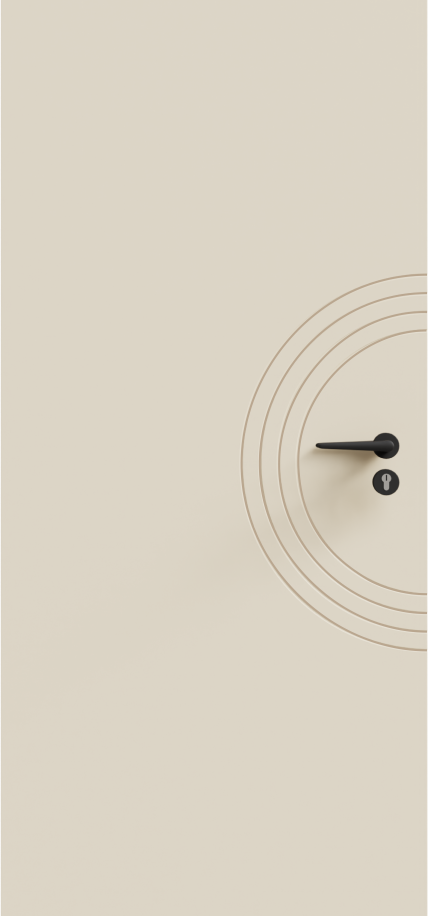

INTERIOR DOOR SUBITO

SUBITO painted internal doors feature a solid wooden construction and a durable three-layer paint system to guarantee long-lasting colour. They offer a wide choice of colours from RAL and NCS palettes and the possibility to personalise hinges and locks, including rebated and non-rebated options.

solid construction – wooden rail and stile set

3-layer painting system - colour fastness for many years

large RAL and NCS colours palette

K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT

single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)

hinges: silver type K – for the DIN system door frame, silver type C –
for the wooden door frame, type M – for the metal door frame or the
concealed DUO satin nickel (”60”-”80” – 2 pcs, ”80”-”90” – 3 pcs)

in case of door leaf with door closer and DIN system or metal frame
T type hinges should be used ( „60”-„80” – 3 pcs, „90”-„110” – 4 pcs) -
replacement of standard hinges with hinge type T for an extra charge

BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (available at an extra charge)

size “100”

size “110”

REVES system

recuperation trim

perforated chipboard in-fill

solid chipboard in-fill (third hinge recommended)

third hinge in the door leaf or adjustable pivot hinge:
type M, type C, type K a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”

the DUO hinge replaced with white or black colour

rebated system BLACK collection:
the lock colour replaced with black colour

rail and stile set (allowing the user to shorten the door leaf
by max. 50 mm on a do-it-yourself basis)

rail and stile set (allowing the user to shorten the door leaf
by max. 90 mm on a do-it-yourself basis)
reinforcement for door closer

bottom rail and stile set protection against excessive
moisture impact (not applicable to leaves with ventilation
trim)

door lower by 50 mm or 100 mm (rebated system)

door lower by 55 mm or 100 mm (non-rebated system)

door higher by 50 mm or 100 mm
(third hinge in the door leaf is required)

door higher by 150 mm or 200 mm
(third hinge in the door leaf is required)

ventilation trim (p. 141)

leaf edge in the colour of black, grey or graphite

Características técnicas

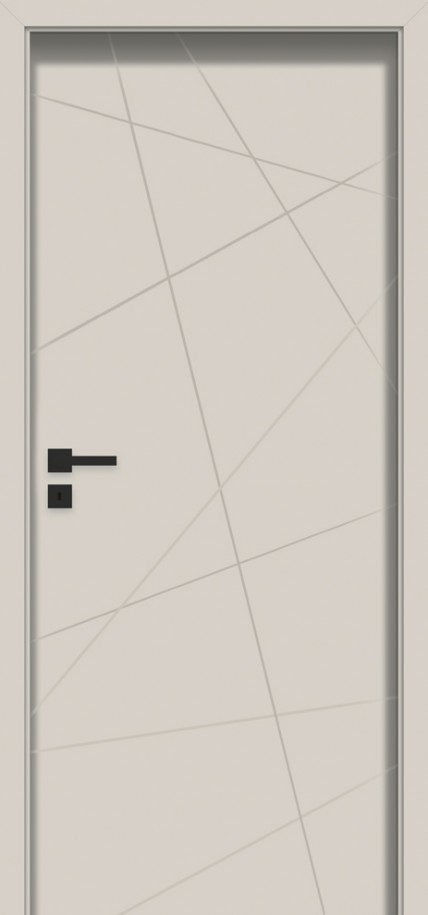

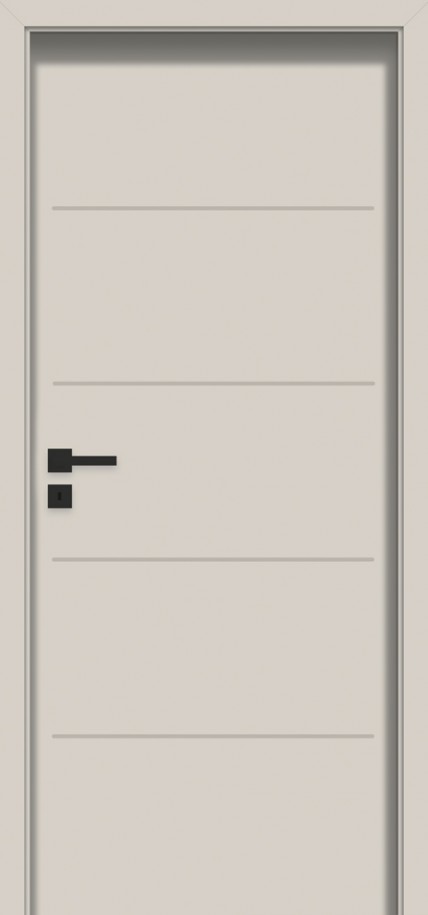

Modelos disponibles	VF16, VF3, VF2, VF1
Acabados	PAINTED
Colores	c91, c441, c440, c438, c437, c436, c435, c439, c434, c433, c432, c431, c429, c425, c424, c423, c421, c420, c419, c417, c415, c413, c410, c409, c298, c299, c300, c426, c408, c375, c376, c374, c406, c405, c373, c372, c404, c403, c371, c407
