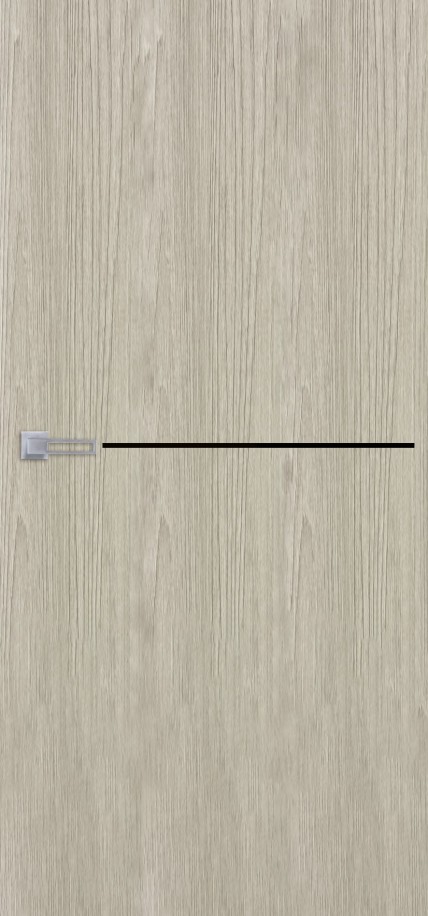

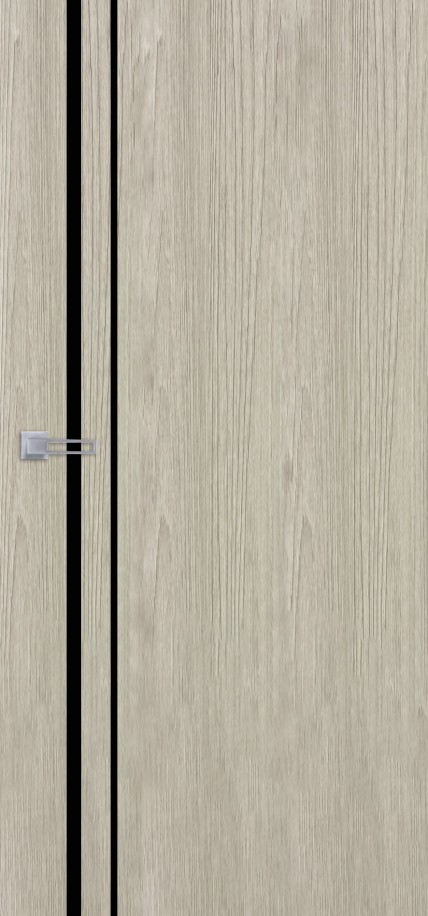

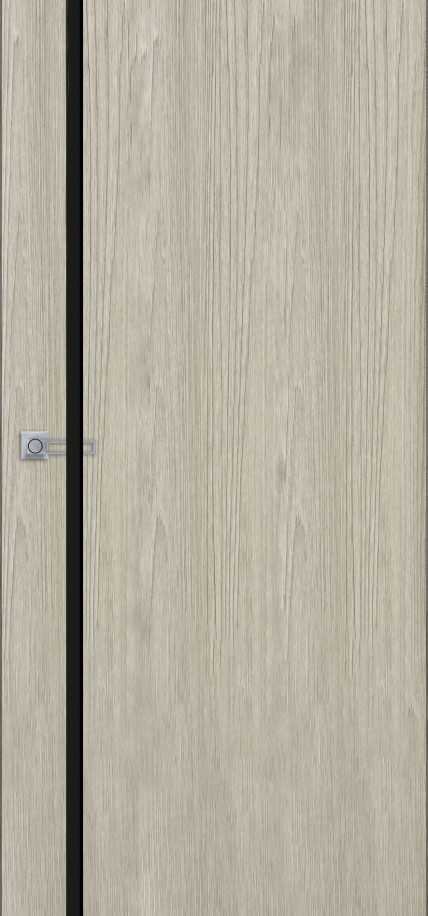

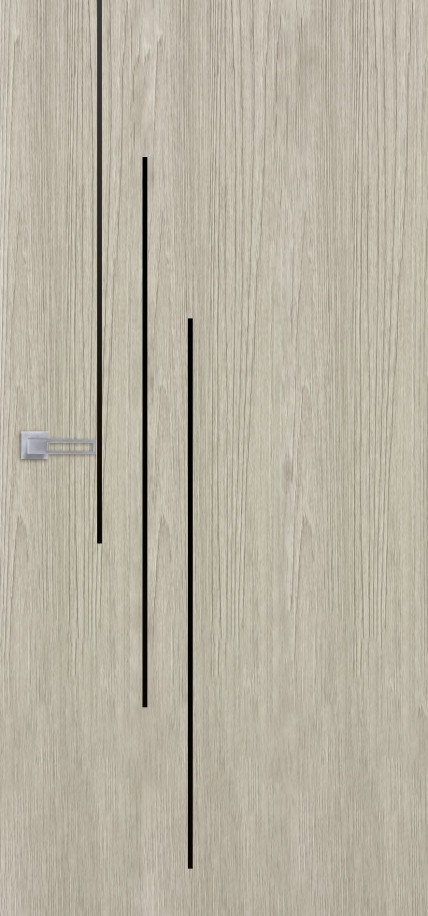

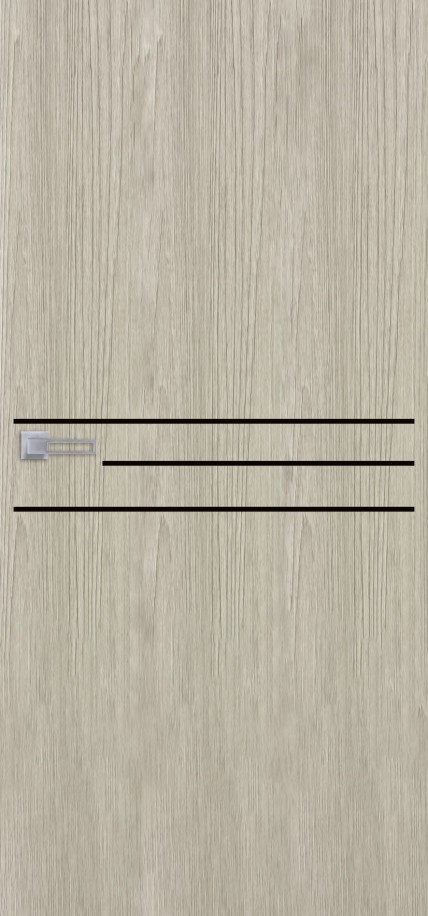

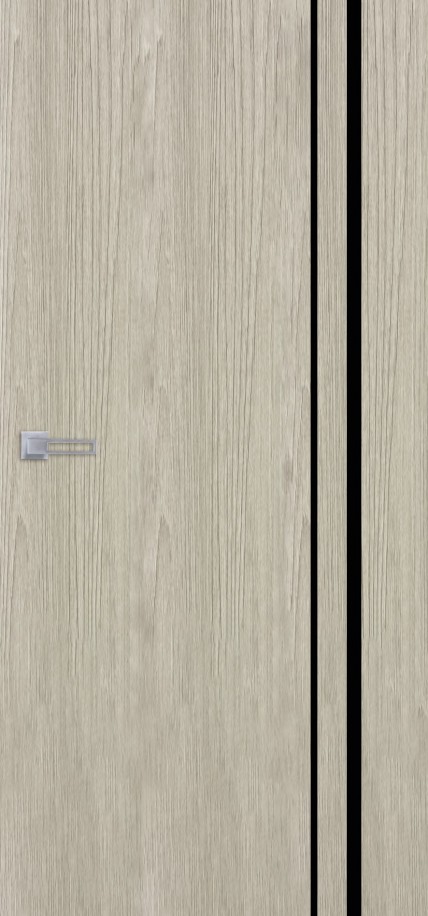

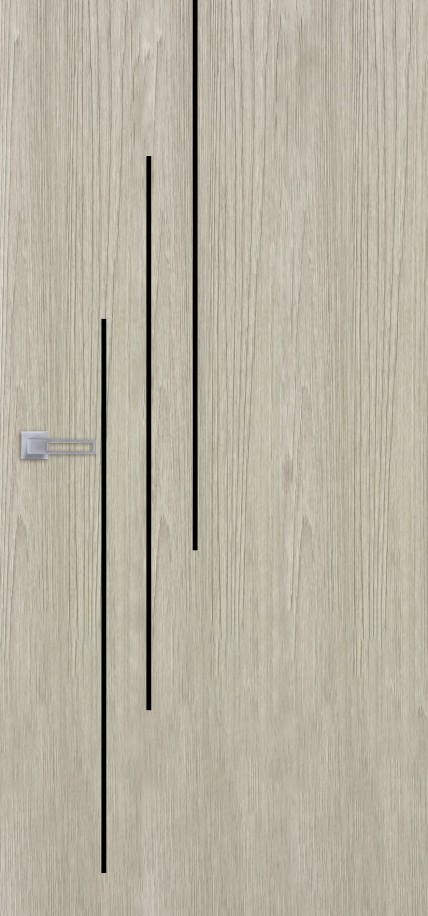

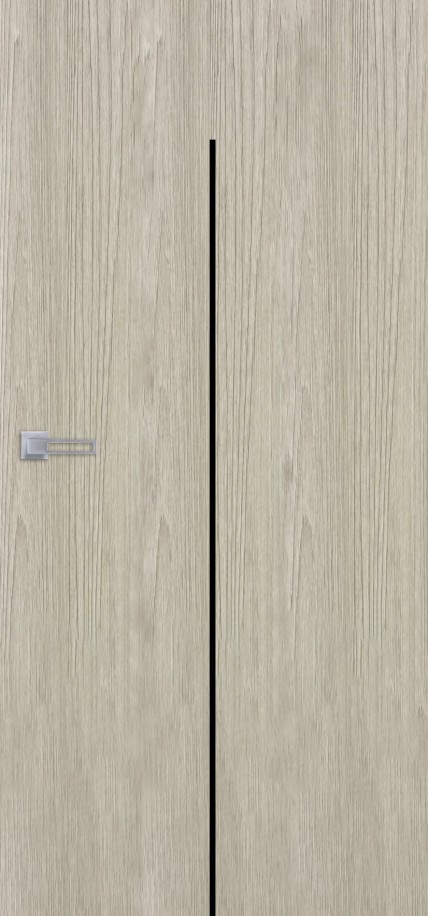

SONATA

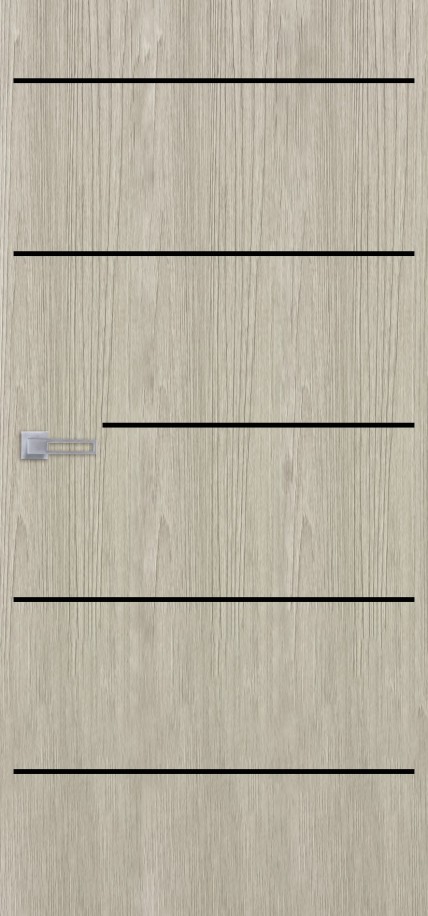

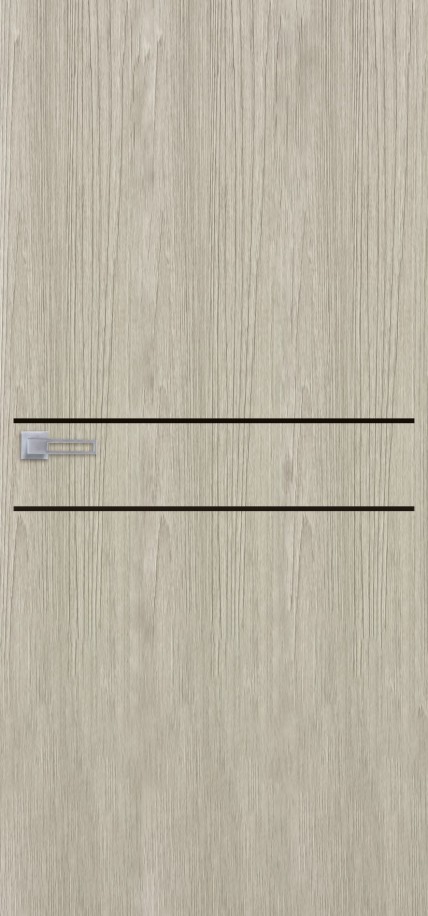

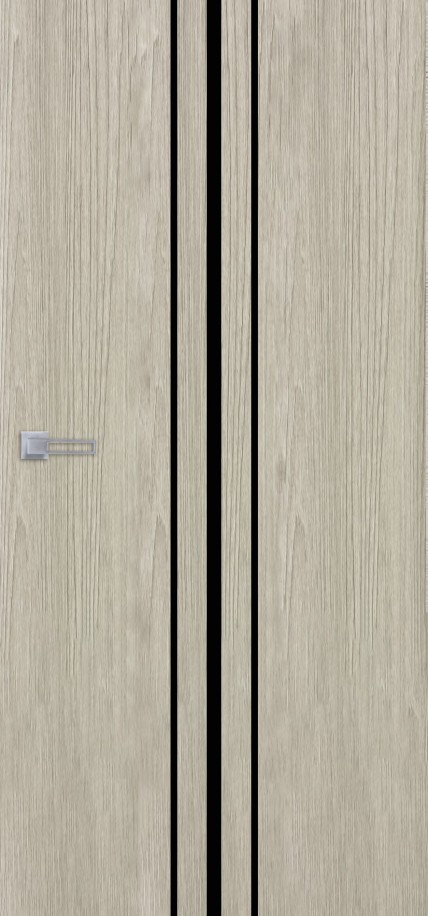

INTERIOR DOOR SONATA

• solid construction – wooden rail and stile set
• stable solid chipboard in-fill
• large LAMISTONE CPL and SILKSTONE surface finish
• K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

• single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
  mortise lock (non-rebated system), key-operated (spacing: 90 mm),
  for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
• hinges: type K – for the DIN system door frame, type C – for the
  wooden door frame, type M – for the metal door frame (”60”-”80” –
  2 pcs, ”90” – 3 pcs) or the concealed DUO satin nickel (”60”-”70” – 2 pcs,
  ”80”-”90” – 3 pcs)
  in case of door leaf with door closer and DIN system or metal frame
  to be used T type hings ( „60”-„80” – 3 pcs, „90”-„100” – 4 pcs) -
  replacement of standard hinges with hinge type T for an extra charge
• version W8: no possibility to use a ventilation slot or a ventilation grill



ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

• size ”100”
• REVES system
• recuperation trim
• third hinge in the door leaf:
  type K, type C, type M for a width of ”60”-”80”
  concealed DUO type for a width of ”60”-”70”
• rail and stile set (allowing the user to shorten the door leaf by
  max. 50 mm on a do-it-yourself basis) (not applicable to version W8)
• rail and stile set (allowing the user to shorten the door leaf by
  max. 90 mm on a do-it-yourself basis) (not applicable to version W8)
• reinforcement for door closer
• bottom rail and stile set protection against excessive moisture impact
  (not applicable to leaves with ventilation trim)
• door lower by 50 mm or 100 mm (rebated system)
• door lower by 55 mm or 100 mm (non-rebated system)
• door higher by 50 mm or 100 mm
  (third hinge in the door leaf is required)
• door higher by 150 mm or 200 mm
  (third hinge in the door leaf is required)
• ventilation trim
• aluminium edge (non-rebated system)
• aluminium decors in black, chrome gloss, golden gloss
• leaf edge in the colour of black, grey or graphite
