SLIM

Interior doors SLIM

• solid construction made of a timber frame glued in layers
• 40 mm thick vertical glued laminated timber frame glued laminated timber
• horizontal 35 mm thick frame made of glued laminated wood
• glued laminated wood MDF panels 25 mm thick and 260 mm highcovered with UNI MAT PLUS; SILKSTONE or LAMISTONE

STANDARD EQUIPMENT

• 40 mm thick vertical glued laminated wood frame
• 35 mm thick horizontal glued laminated wood frame
• MDF panels 25 mm thick and 260 mm high
• mortise single point lock, 72 mm spacing, for key WK, WB,
  WC or magnetic mortise lock with key (key size 90 mm), insert (key size 85 mm) key (centre distance 85 mm) or magnetic mortise lock (centre distance WC)
• hinges: type K brushed nickel for DIN system frame, type Cbrushed nickel - for wooden door frame, type M - for metal door frame or doorless hinge.
  for wooden door frame, type M - for metal door frame or hinge without rebate DUO satin nickel covered hinge

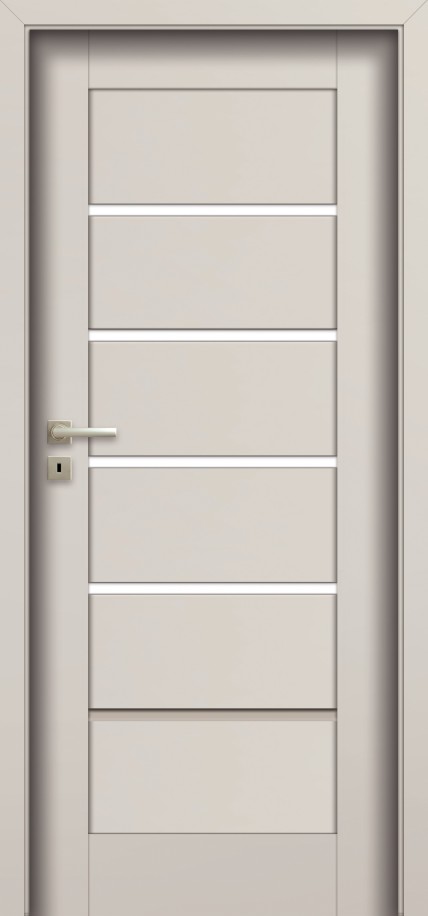

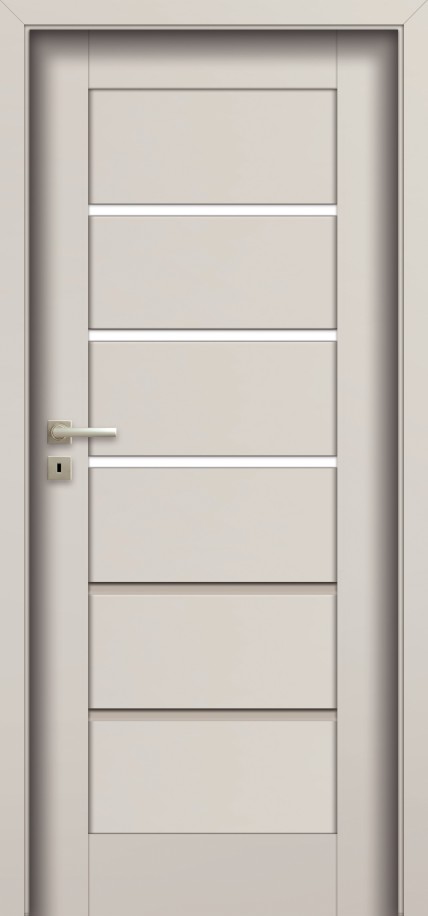

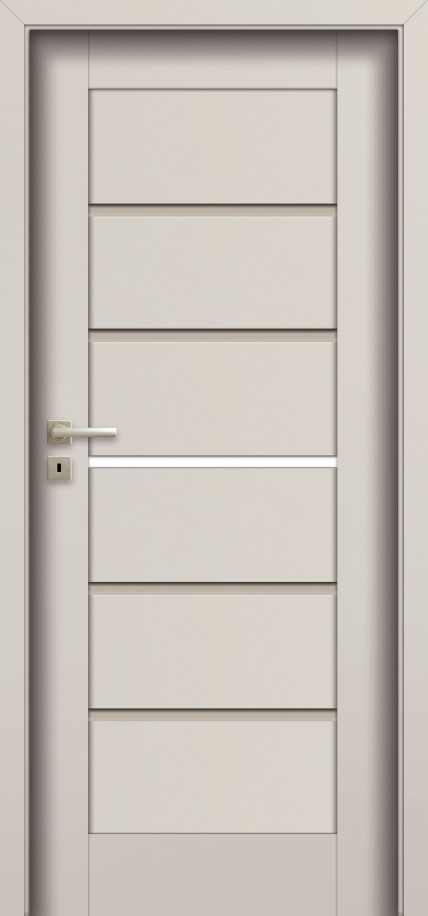

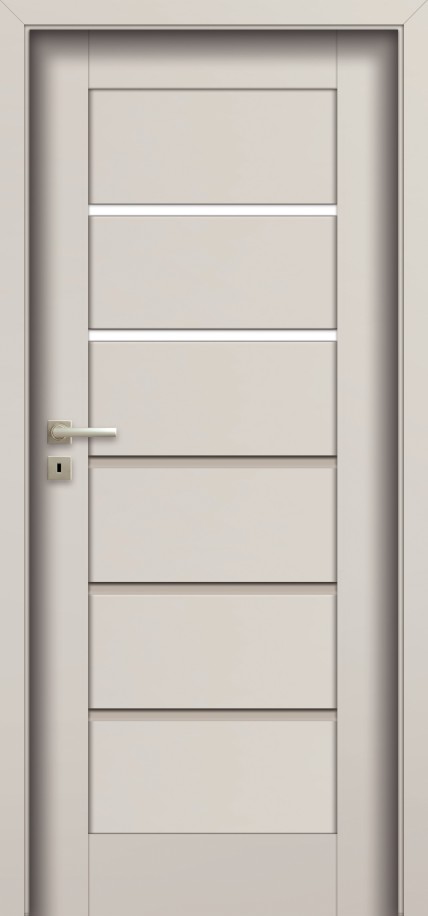

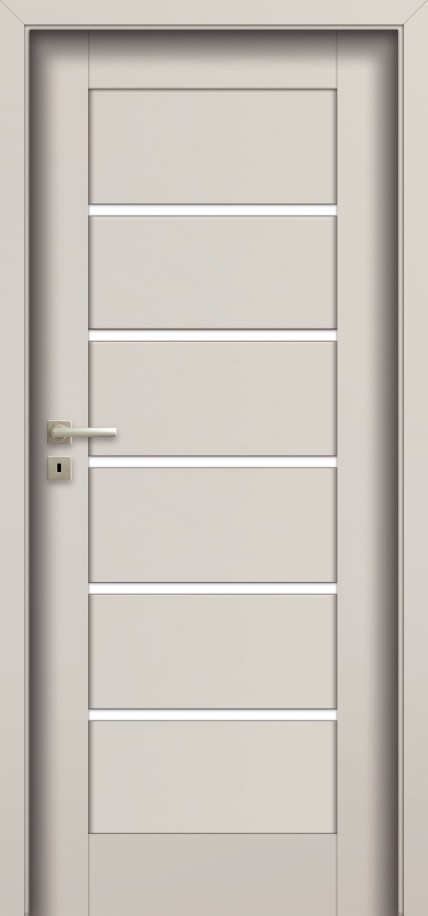

  (‘60’-‘80’- 2 pcs.; ‘90’-3 pcs.) colour 644 blackrebate system - silver-coloured hinges; black-coloured lockno rebate system - hinges and lock in blackcolour 642 white; super white 213rebate system - silver-coloured hinges, white lockrebate-free system - hinges and lock in whiteglazing white matt or brown matt thickness 4mm designs V3S1; V3S2; V3S3;V3S4; V3S5; V3SA

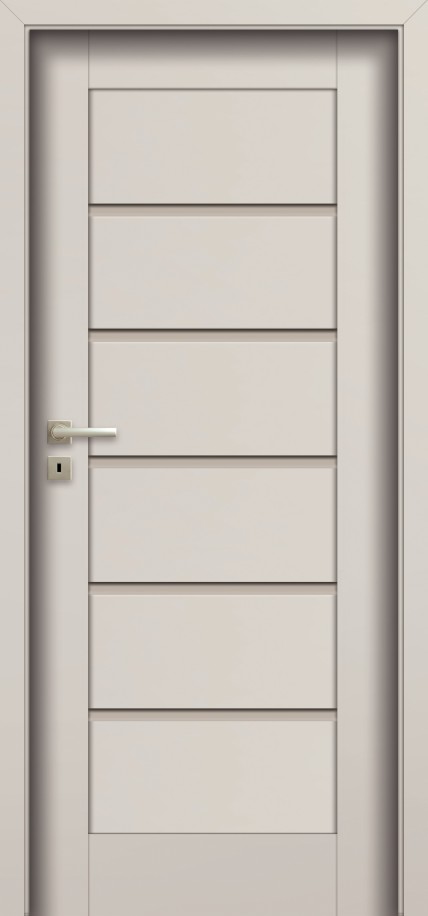

• design V03,V3S1;V3S2;V3S3;V3S4; V3SA - panel thickness 4mm in the same colour as door leaf
• no possibility of using door closer
• no possibility of using a drop seal

ADDITIONAL EQUIPMENT

• size ‘100’
• doors lower by 50 mm
• doors higher by 50 mm or 100 mm (third hinge required at extra charge)
• Third hinge in the sash:
• type C for widths ‘60’-‘80’.
• type K for widths ‘60’-‘80’.
• type M for widths ‘60’-"80’
• covered DUO for widths ‘60’-"70’
• ventilation undercutrecuperative shortcut (only standard heights)
• VSG 22.1 laminated glass, black colour (refers to 1 pane)
