MODO

INTERIOR DOOR MODO

• solid construction – a high quality MDF rail and stile set
• vertical and horizontal rail and stile set is the same 40
  mm thickness
• MDF rail and stile set covered with UNI MAT PLUS,
  LAMISTONE, SILKSTONE surface
• 12 mm thick MDF panel covered with UNI MAT PLUS,
  LAMISTONE, SILKSTONE surface
• spatial design frame

STANDARD EQUIPMENT

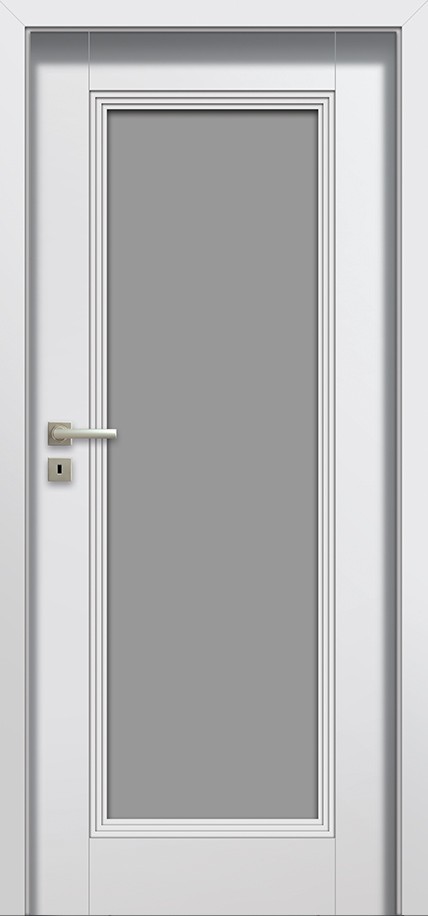

• version W01 - white matt tempered glass pane, thickness: 4 mm
  single-point mortise lock in white zinc, 72 mm spacing (rebated
  system), in colour UNI MAT PLUS black 644, single-point mortise lock
  in colour black, 72 mm spacing (rebated system) or magnetic lock
  in colour satin nickel (non-rebated system) mortise key-operated
  (90 mm spacing) for a cylinder (85 mm spacing) or for a bathroom lock
  (90 mm spacing)
  UNI MAT PLUS black 644 magnetic lock in black (non-rebated system)
  key-operated (spacing 90 mm) for an insert (spacing 85 mm) or for
  a bathroom lock (spacing 90 mm)
• hinges: type B – for the DIN system door frame, type D – for the MDF,
  type M – for the metal door frame or the concealed DUO satin nickel
  (”60”-”90” – 3 pcs). In black UNI MAT PLUS 644 concealed hinges DUO
  in black.
• door closer is not available
• drop seal is not available
• no possibility to use VSG 22.1, VSG 33.1 laminated glass

ADDITIONAL EQUIPMENT (available at an extra charge):

• door lower by 50 mm (rebated system)
• door lower by 55 mm (non-rebated system)
• ventilation trim
• tempered transparent 4 mm thick glass
