HAPTIC

INTERIOR DOOR HAPTIC

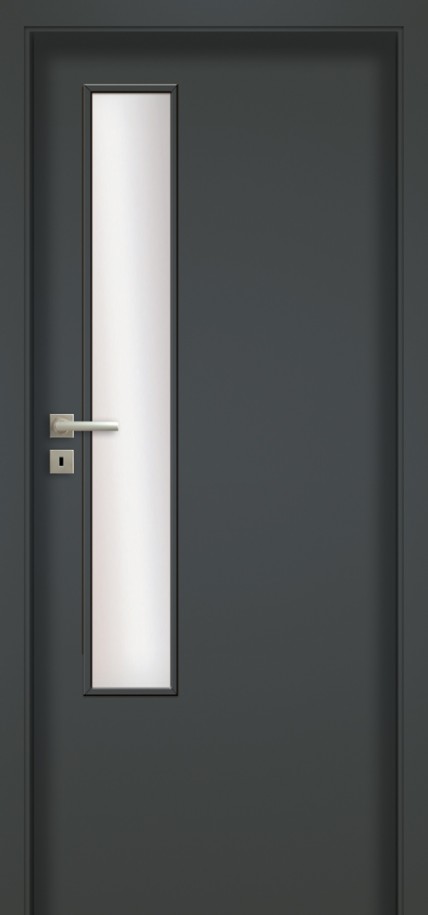

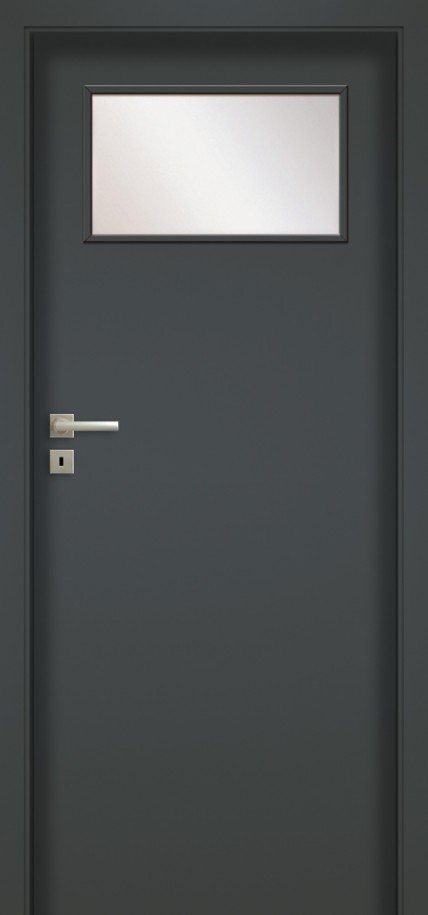

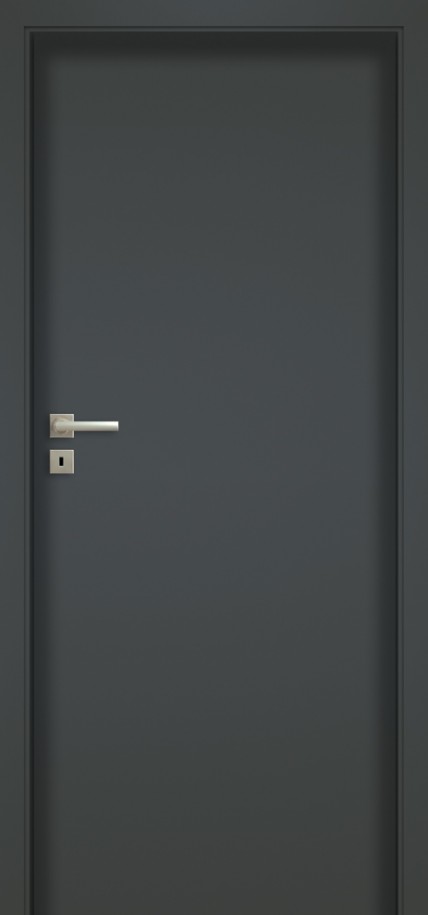

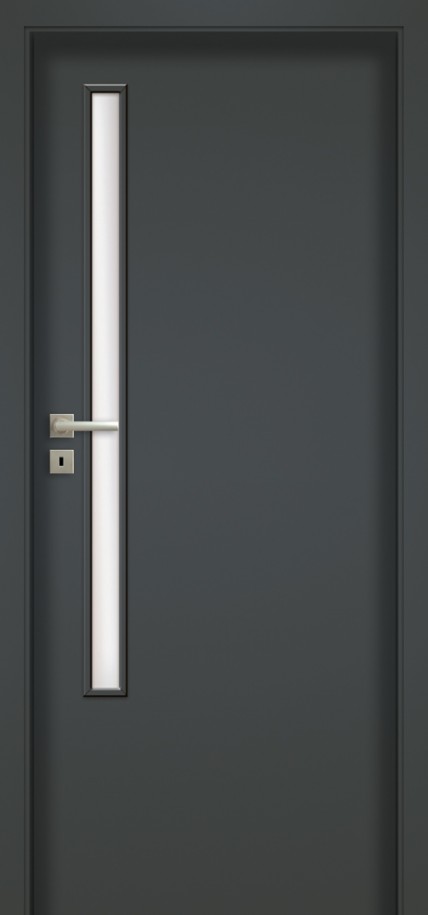

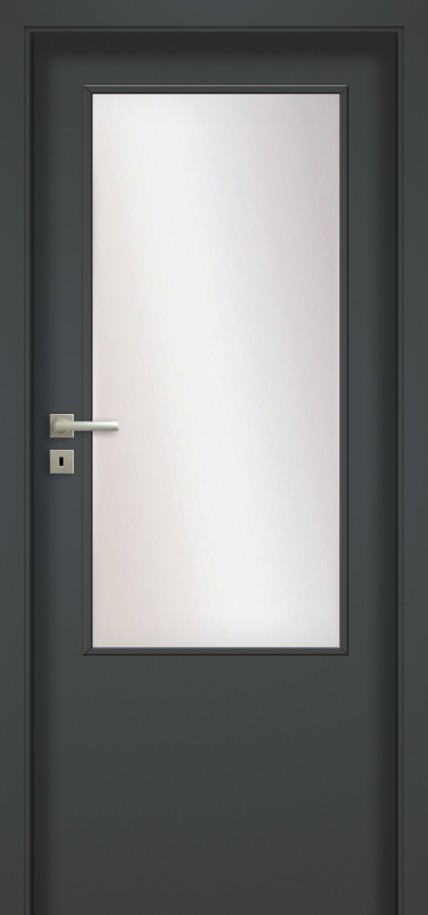

Smooth HAPTIC doors, with a unique UNI MAT PLUS surface with silky haptics and a special coating resistant to fingerprints, will complement stylish arrangements. The clean and light form of the wings is a tasteful proposal for modern interiors. Available in solid or glass versions.

• solid construction – wooden rail and stile set
• large UNI MAT PLUS surface, characterised
  by a silky haptics and special coating resistant
  to fingerprints
• K and C type adjustable and DUO type concealed hinges

STANDARD EQUIPMENT:

• white/brown matt or transparent 4 mm glass
  model 03SD standard: white/brown tempered glass, thickness: 4 mm
• single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
  mortise lock (non-rebated system), key-operated (spacing: 90 mm),
  for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)
• hinges: type K – for the DIN system door frame, type D – for the MDF,
  type M – for the metal door frame or the concealed DUO satin nickel
  (”60”-”80” – 2 pcs, ”90” – 3 pcs)
• in case of door leaf with door closer and DIN system or metal frame
  to be used T type hings ( „60”-„80” – 3 pcs, „90”-„110” – 4 pcs) -
  replacement of standard hinges with hinge type T for an extra charge



ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

• size ”100” (glazing decoration as in ”90”)
• size “110” (glazing decoration as in “90”)
• recuperation trim
• REVES system (version 00)
• perforated chipboard in-fill
• solid chipboard in-fill (third hinge recommended)
• third hinge in the door leaf or adjustable pivot hinge:
  type K, type M for a width of ”60”-”80”
  concealed DUO type for a width of ”60”-”80”
• the DUO lock colour replaced with black or golden gloss colour
• rail and stile set (allowing the user to shorten the door leaf
  by max. 50 mm on a do-it-yourself basis)
• rail and stile set (allowing the user to shorten the door leaf
  by max. 90 mm on a do-it-yourself basis)
• reinforcement for door closer
• bottom rail and stile set protection against excessive moisture impact
  (not applicable to leaves with ventilation trim)
• door lower by 50 mm or 100 mm (rebated system)
• door lower by 55 mm or 100 mm (non-rebated system)
• door higher by 50 mm or 100 mm (not applicable to the
  fixed MDF frame) (third hinge in the door leaf is required)
• door higher by 150 mm or 200 mm (not applicable to the
  fixed MDF frame) (third hinge in the door leaf is required)
• ventilation trim (p. 141)
• tempered glass: version 02, 04, 05
• tempered transparent 4 mm thick glass
