CAMBIO

INTERIOR DOOR CAMBIO

solid construction – wooden rail and stile set

3 - layer painting system - colour fastness for many
years

large RAL and NCS colours palette

K and C type adjustable and DUO type concealed
hinges

STANDARD EQUIPMENT:

white matt or transparent 4 mm thick glass
version 03SD: white matt tempered glass

single-point mortise lock, spacing: 72 mm (rebated system) or magnetic
mortise lock (non-rebated system), key-operated (spacing: 90 mm),
for a cylinder (spacing: 85 mm) or a bathroom lock (spacing: 90 mm)

hinges: type K – for the DIN system door frame, type C – for the
wooden door frame, type M – for the metal door frame or the
concealed DUO satin nickel (”60”-”80” – 2 pcs, ”90” – 3 pcs)

in case of door leaf with door closer and DIN system or metal
frame to be used T type hings ( “60”-“80” – 3 pcs, “90”-“110” – 4 pcs) -
replacement of standard hinges with hinge type T for an extra charge

BLACK collection: standard magnetic lock face plate and DUO hinges
are in the colour of black

ADDITIONAL EQUIPMENT (AVAILABLE AT AN EXTRA CHARGE):

size “100” (glazing decoration as in “90”)

size “110” (glazing decoration as in “90”)

REVES system (version 00)

recuperation trim

perforated chipboard in-fill

solid chipboard in-fill (third hinge recommended)

third hinge in the door leaf or adjustable pivot hinge:
type M, type C, type K for a width of ”60”-”80”
concealed DUO type for a width of ”60”-”80”

the DUO hinge replaced with white or black colour

the DUO lock colour replaced with black or golden gloss colour

rebated system BLACK collection
the lock colour replaced with black colour

rail and stile set (allowing the user to shorten the door leaf
by max. 50 mm on a do-it-yourself basis)

rail and stile set (allowing the user to shorten the door leaf
by max. 90 mm on a do-it-yourself basis)

reinforcement for door closer

bottom rail and stile set protection against excessive moisture impact
(not applicable to leaves with ventilation trim)

door lower by 50 mm or 100 mm (rebated system)

door lower by 55 mm or 100 mm (non-rebated system)

door higher by 50 mm or 100 mm (third hinge in the door
leaf is required)

door higher by 150 mm or 200 mm (third hinge in the door
leaf is required)

ventilation trim (p. 141)

tempered glass: versions 02, 04, 05

leaf edge in the colour of black, grey or graphite

tempered transparent 4 mm thick glass

Características técnicas

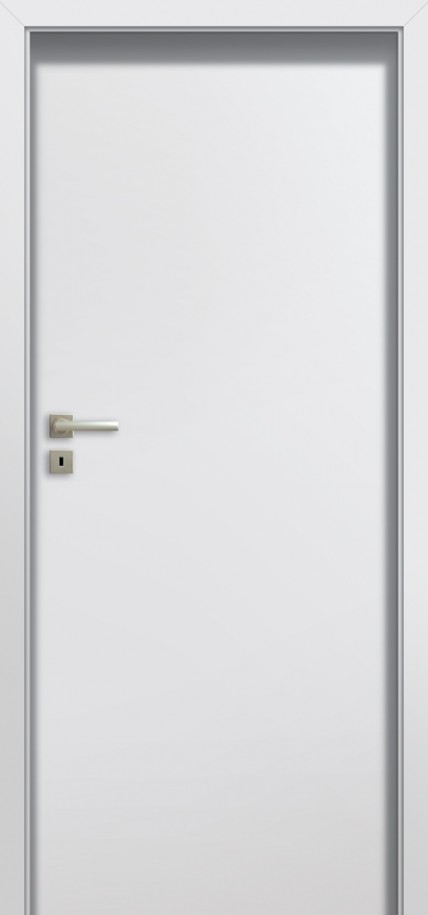

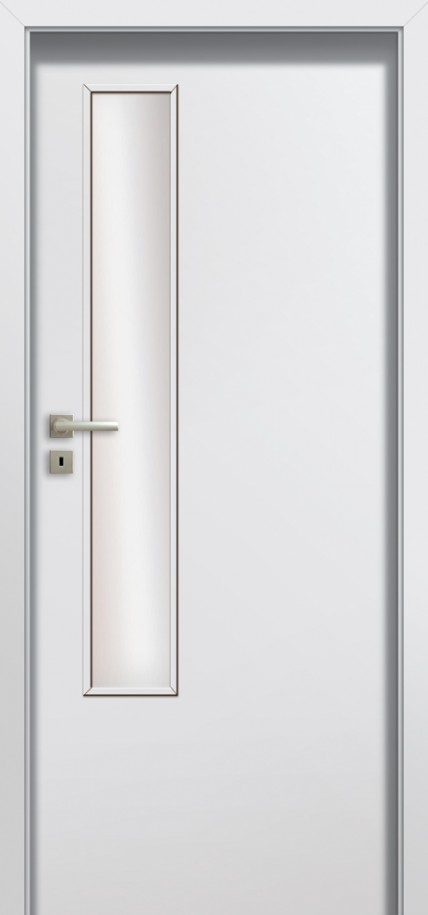

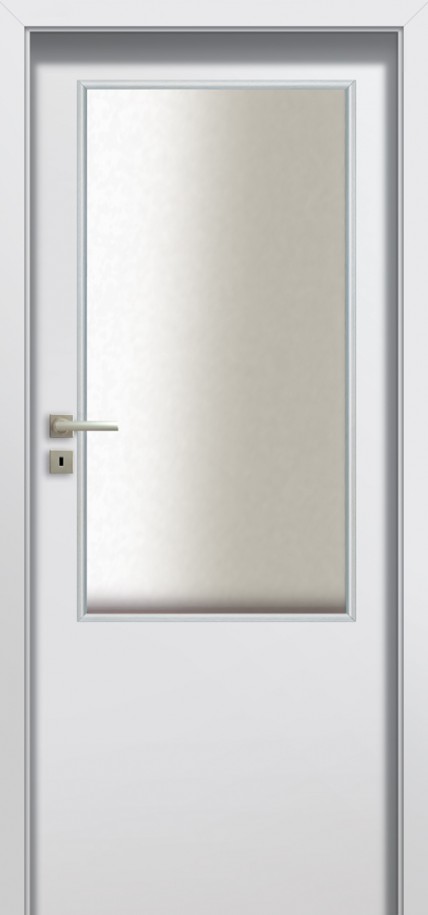

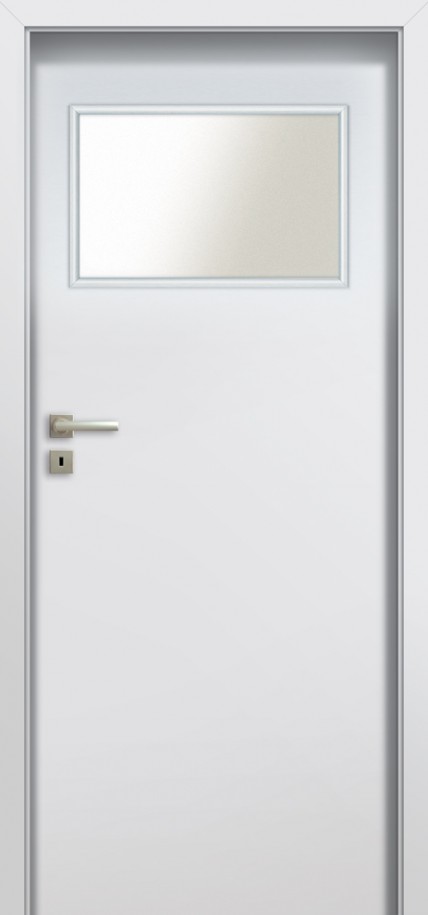

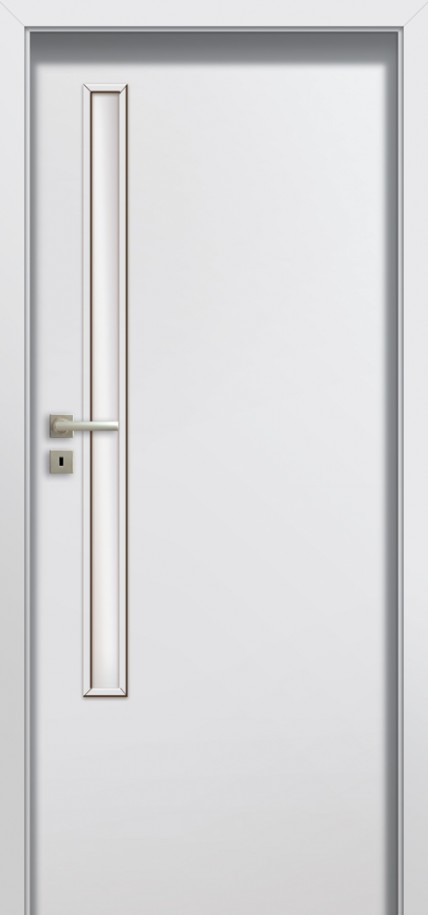

Modelos disponibles	V2S, V00, V5SD, V4SD, V3SD
Acabados	PAINTED
Colores	c91, c371, c441, c440, c438, c437, c436, c435, c439, c434, c433, c432, c431, c429, c425, c424, c423, c421, c420, c419, c417, c415, c413, c410, c409, c298, c299, c300, c426, c408, c375, c376, c374, c406, c405, c373, c372, c404, c403, c407
