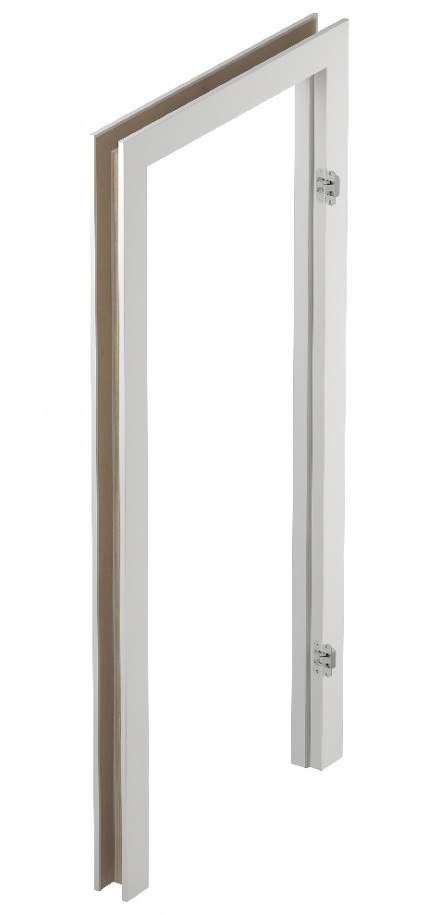

DIN DUO SYSTEM ADJUSTABLE

Marcos de puerta

SYSTEM

non-rebated system

EXTRA CHARGES

door frame lower by 55 mm or 100 mm
door frame higher by 50 mm or 100 mm
door frame higher by 150 mm or 200 mm
width „100”
width „110”
reinforcement for the arm/guide rail door closer***
architraves interconnected at the 90° angle
electric action door strike BIRA HARTE XS narrow with slip (reverse) XS12R-C 12V DC (including SPEC-525 catch plate and a cut for the electric strike)**
electric action door strike BIRA HARTE XS narrow with slip (averse) XS12U-C 12V AC/DC (including SPEC-525 catch plate and a cut for the electric strike)**
electric action door strike BIRA HARTE XS narrow with slip (averse with switch) XS12UW-C 12V AC/DC (including SPEC-525 catch plate and a cut for the electric strike)**
crown

The installation door width must be enlarged by 15 mm for the DUO non-rebated system door leaves equipped with the HOBES lock.
Door frames with ranges wider than the maximum ones provided in the table above are available (upon consultation with the Sales Department).
*environment-friendly acrylic paints, RAL and NCS colours (except metallic ones) – available at an extra charge according to the colour groups
** for leaves equipped with the ECO Schulte GBS 12 - extra charge, the installation hole width increased by 25 mm
***NOTE! The recommended dimension of the installation hole height increased by 16 mm.

DIMENSIONS

single leaf door

Características técnicas

Modelos disponibles	adjustable DIN DUO
Acabados	SILKSTONE, ECO TOP, LAMISTONE CPL, PAINTED, ECO TOP, HIGH TOP, PAINTED, LAMISTONE CPL, LAMINATED CPL, SILKSTONE, VENEERED, LAMINATED CPL, UNI MAT PLUS, VENEERED, UNI MAT PLUS
Colores	c18, c17, c18, c19, c24, c70, c16, c17, c16, c71, c70, c72, c71, c73, c72, c73, c74, c74, c75, c83, c75, c84, c83, c85, c84, c87, c85, c9, c87, c88, c88, c8, c6, c9, c8, c5, c6, c91, c5, c61, c19, c26, c24, c28, c26, c46, c28, c40, c46, c38, c40, c37, c38, c93, c37, c33, c93, c62, c33, c52, c62, c54, c52, c50, c54, c58, c50, c61, c58
